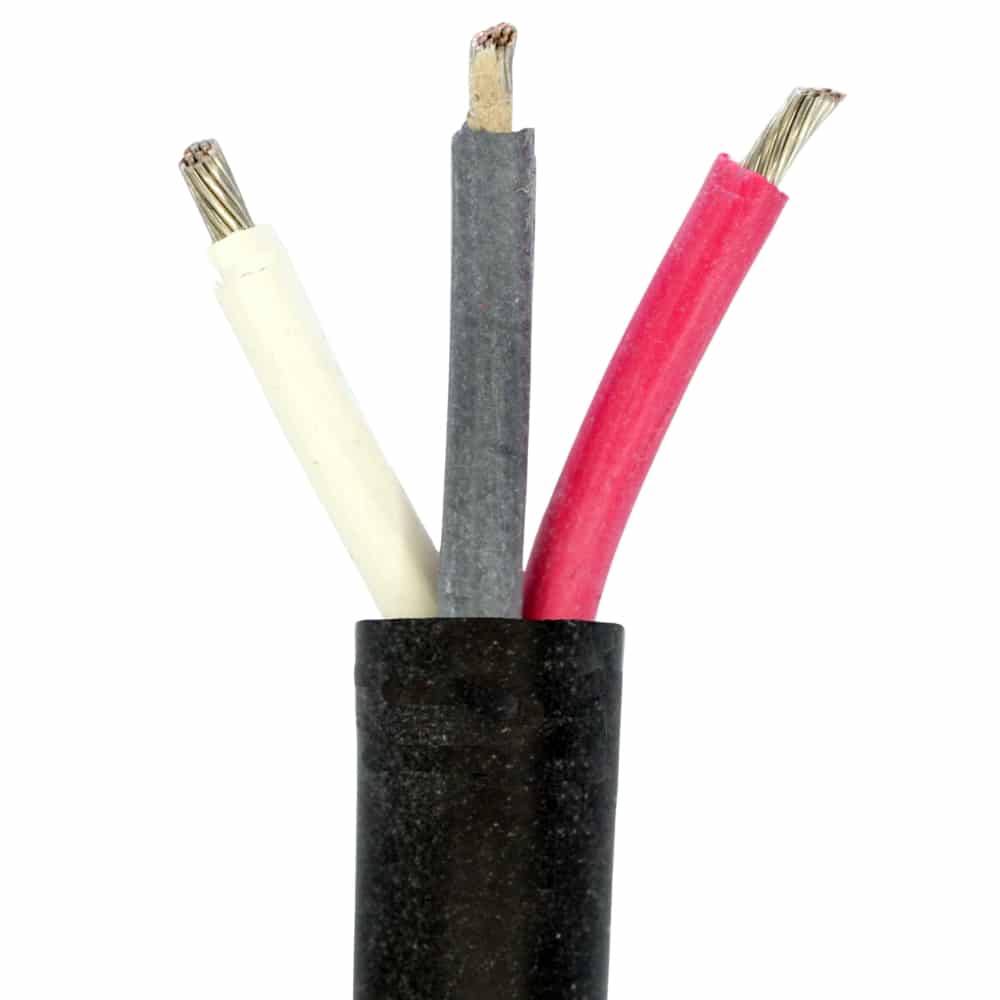

FLAME RETARDANT ARCTIC NEOPRENE MARINE CABLE. 3 CONDUCTOR 14AWG. PN# 026208

MRO Part # 026208

Multi-conductor,  unarmored TYPE P CONTROL CABLE 600V or 0.6/1kV 14 AWG. This cable is shipboard, oilrig and direct burial approved. The jacket is flame retardant Arctic neoprene. The cable meets IEEE standards for 600V and IEC performance requirements for 0.6/1kV is suitable for unarmored use in Class 1 Division 2 and Zone 2 hazardous location and complies with UL 1277  Type TC-ER for exposed run applications.

Marine approvals include: Transport Canada Approved AMS400-20-2, Transport Canada 8700-20-2, United States Coast Guard -46CFR, Lloyd’s Register of Shipping, American Bureau of Shipping (ABS), Det Norske Veritas (DNV)

This cable offers superior resistance to oil, abrasion, moisture, sunlight, mud and impact, with high strand count conductors providing excellent flexibility. It is rate for cold bend and cold impact performance down to -40°/-35°C in accordance with CSA 22.2 No. 0.3. The cable is flame retardant per IEEE 1202 and IEC 60332-3-22 Category A and features an arctic neoprene jacket for ease of stripping in all temperatures.

-40 TO 125c

Datasheet for 026208
