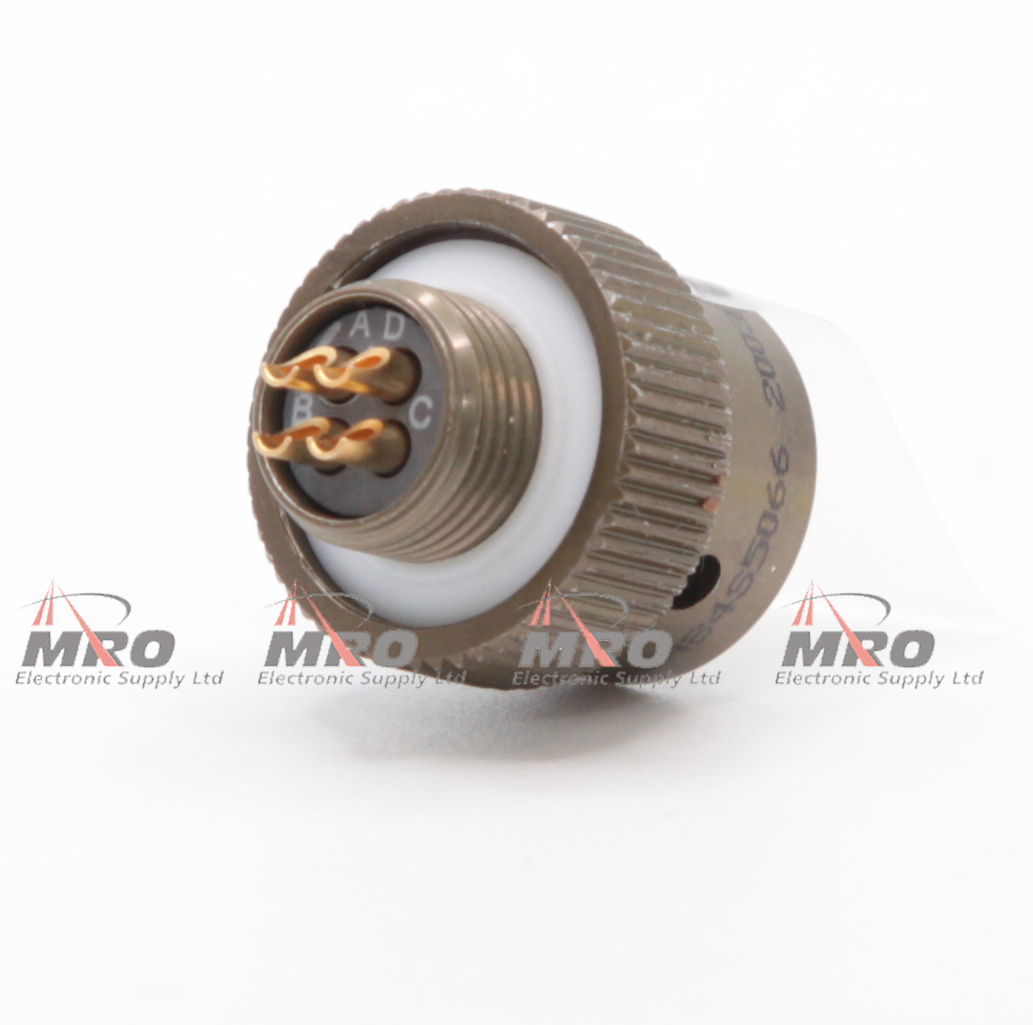

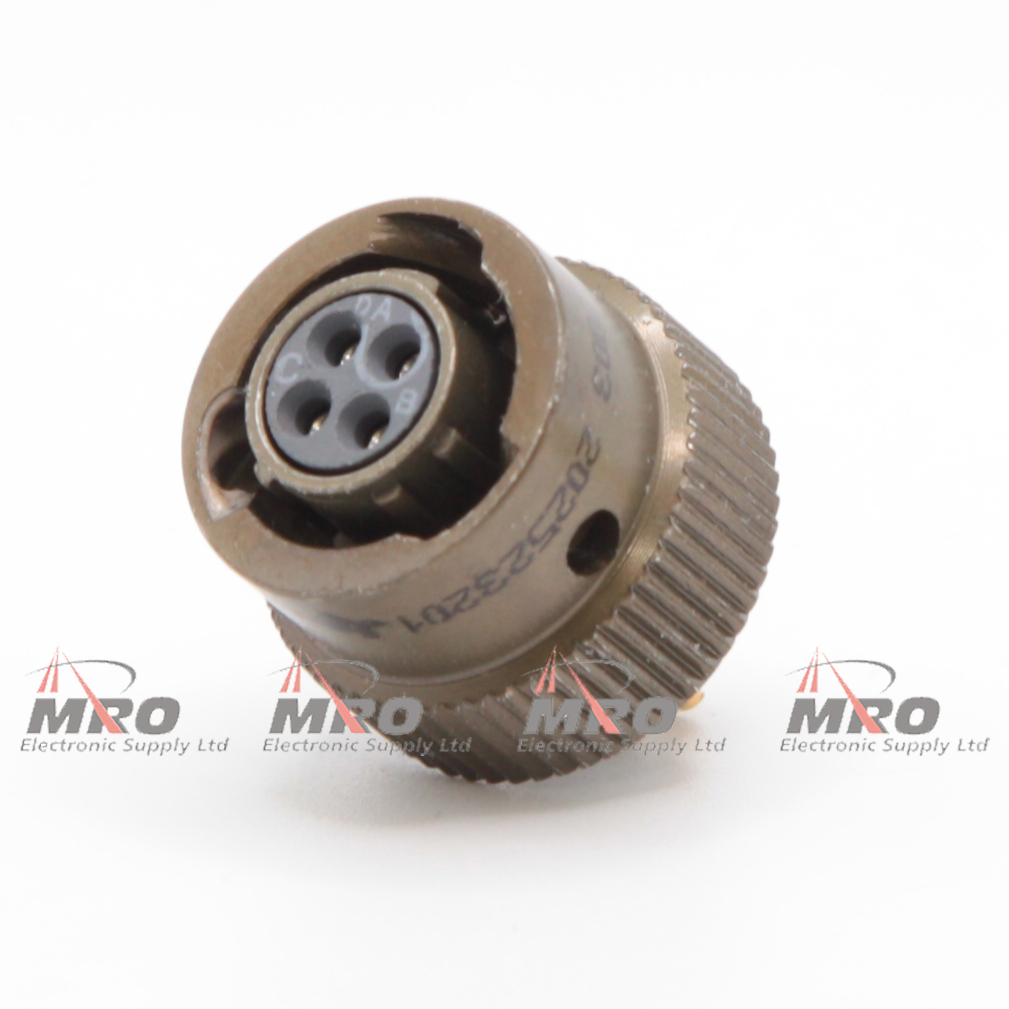

851-06A8-4S50-66 CABLE MOUNT BAYONET CONNECTOR, 4 FEMALE CONTACTS

MRO Part # B06A8-4S

851-06A8-4S50-66Type connector 4 Pin Bayonet Coupled Cable Mount Plug with Female Insert.

Built following MIL-DTL-26482 Guidelines.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.

Manufacture Part Number = 851-06A8-4S50-66
Connector Specification = MIL-C-26482 Series 1 Type
Connector Style = Cable mount plug
Shell Size = #8
Insert Layout = 8-4
Number of Contacts = 4 #20
Contact Gender = Female Socket
Contact Type = Solder
End Bell = No
RoHS = No
Shell Material = Aluminum Alloy
Shell Plating= Chromate
Shell Colour = Olive Drab

MRO Part # B06A8-4S
