MS3111A14-19S MIL TYPE BAYONET CONNECTOR, 19 FEMALE CONTACTS

MRO Part # B01A14-19S

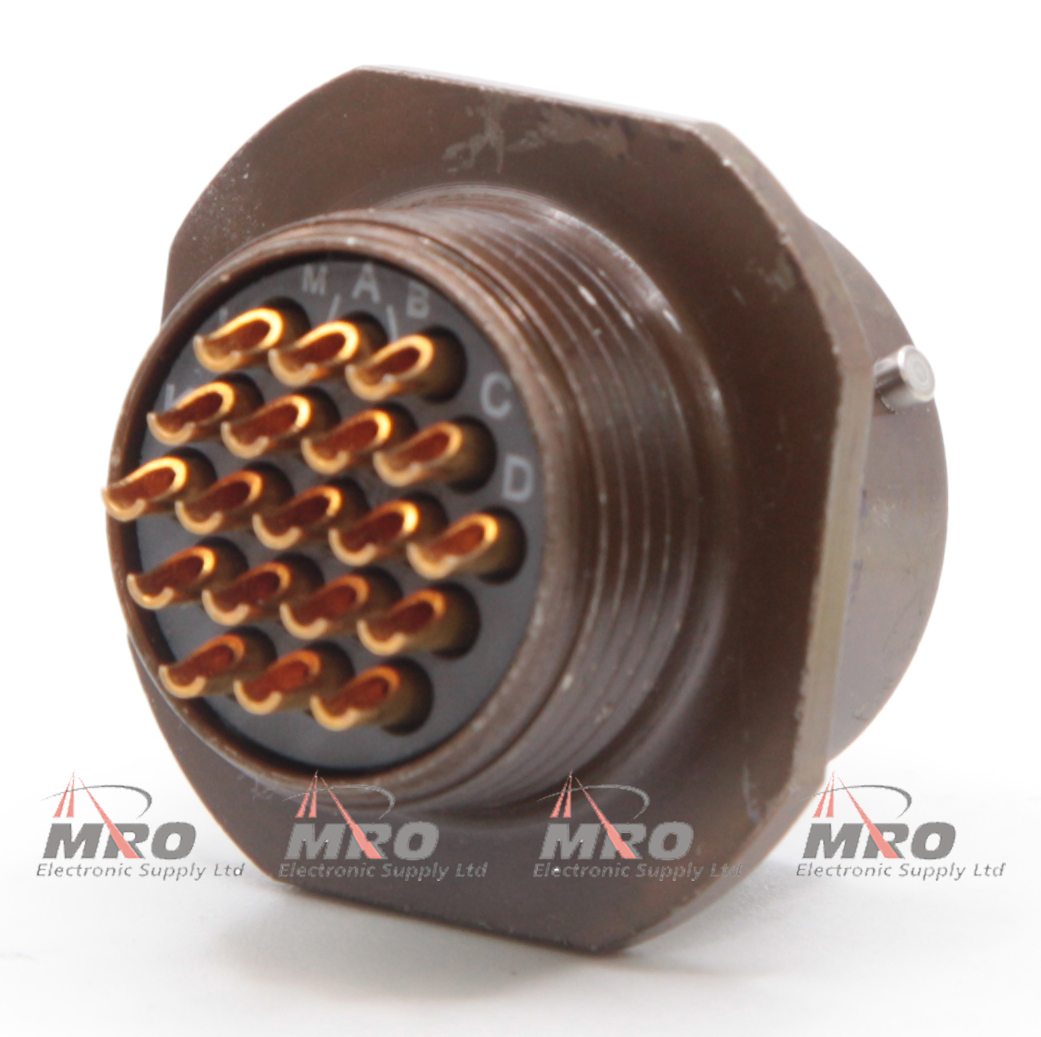

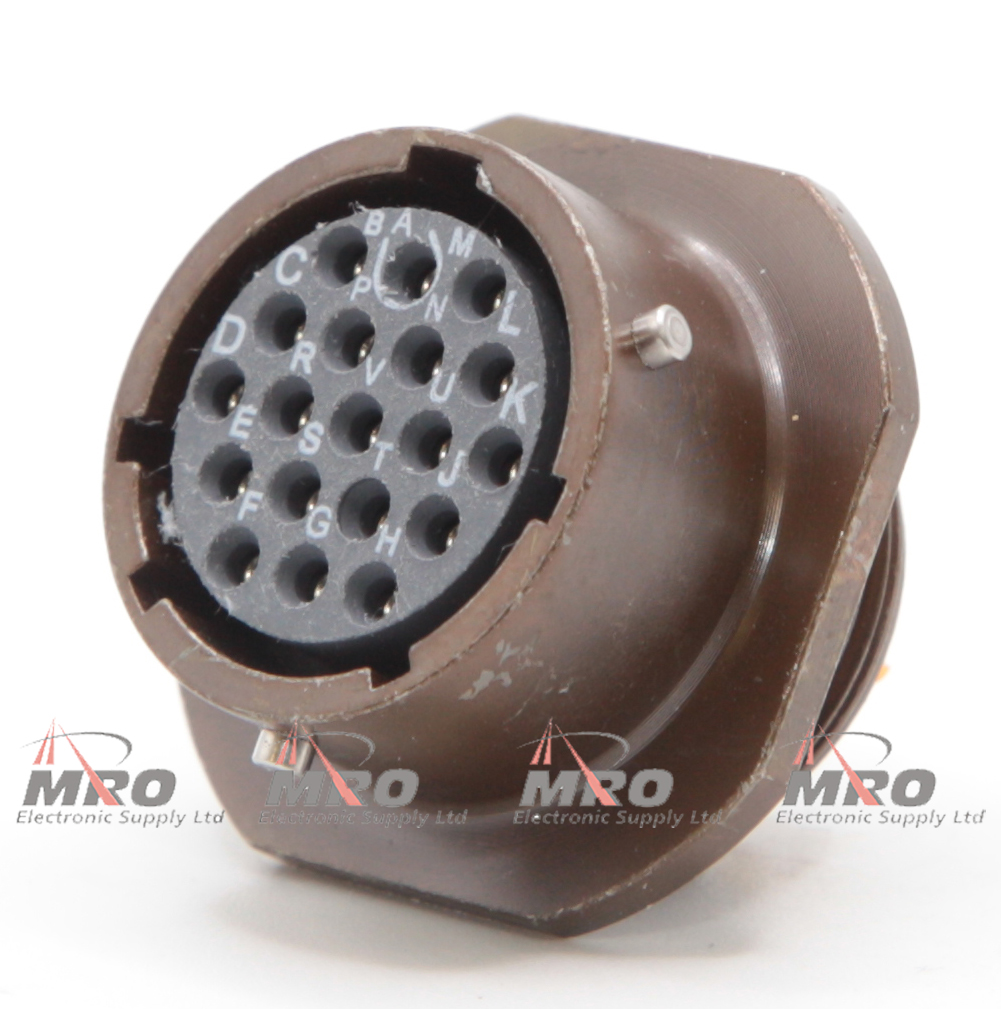

MS3111A14-19S Circular MIL type connector. 19 socket bayonet coupled cable mount jack.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.
Manufacture Part Number = MS3111E14-19S
Connector Specification = MIL-C-26482 Series 1
Connector Style = Cable mount jack
Shell Size = #14
Insert Layout = 19 #20
Number of Contacts = 19
Contact Gender = Female Socket
Contact Type = Solder
End Bell = No
RoHS = No
Shell Material = Aluminum Alloy
Shell Plating= Cadmium
Shell Colour = Olive Drab

Built following MIL-DTL-26482 Guidelines.
