MS3111A16-8P / PT01A16-8P MIL TYPE BAYONET CONNECTOR, 8 MALE CONTACTS

MRO Part # B01A16-8P

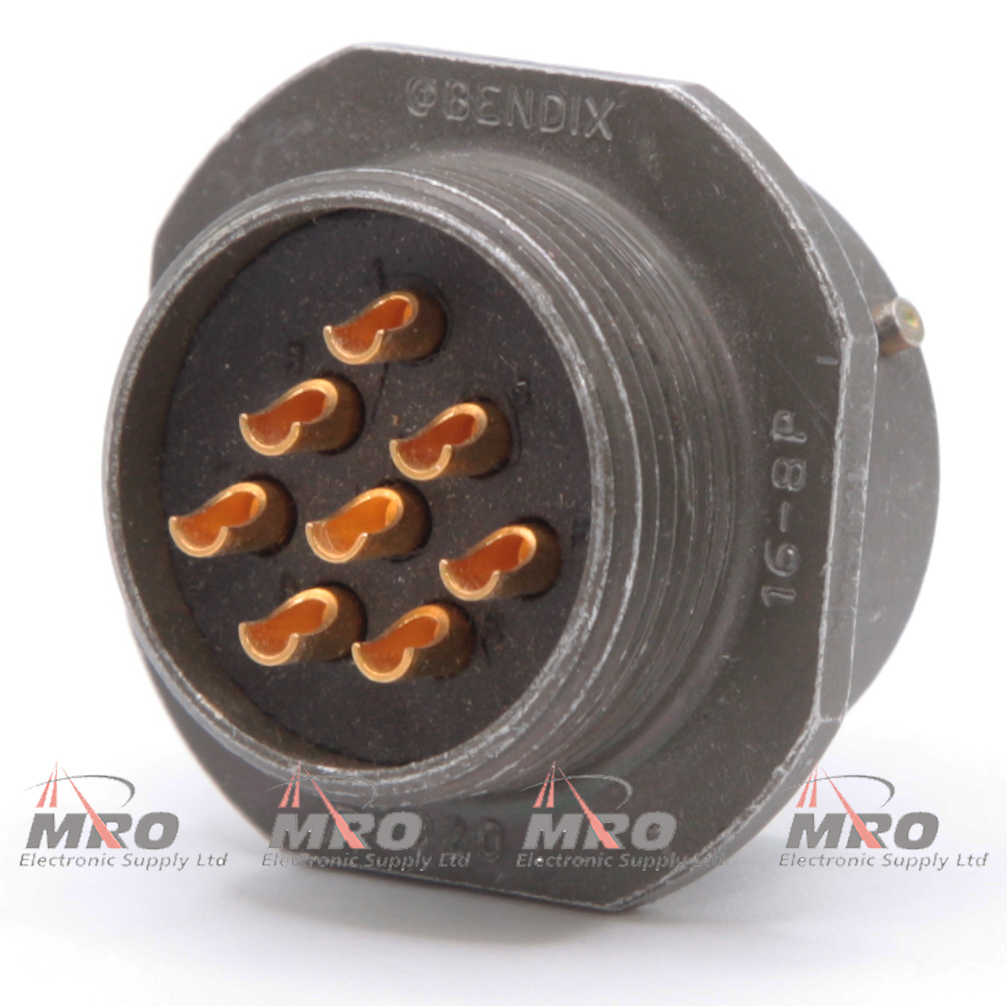

PT01A16-8P Circular MIL type connector. 8 pin bayonet coupled cable mount jack.

Available on special order.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.
Manufacture Part Number = PT01A16-8P
Connector Specification = MIL-C-26482 Series 1
Connector Style = Cable mount jack
Shell Size = 16
Insert Layout = 16-8
Number of Contacts = 8 #16
Contact Gender = Male Pin
Contact Type = Solder
End Bell = No
RoHS = No
Shell Material = Aluminum Alloy
Shell Plating= Cadmium
Shell Colour = Olive Drab

Built following MIL-DTL-26482 Guidelines.

MRO Part # B01A16-8P
