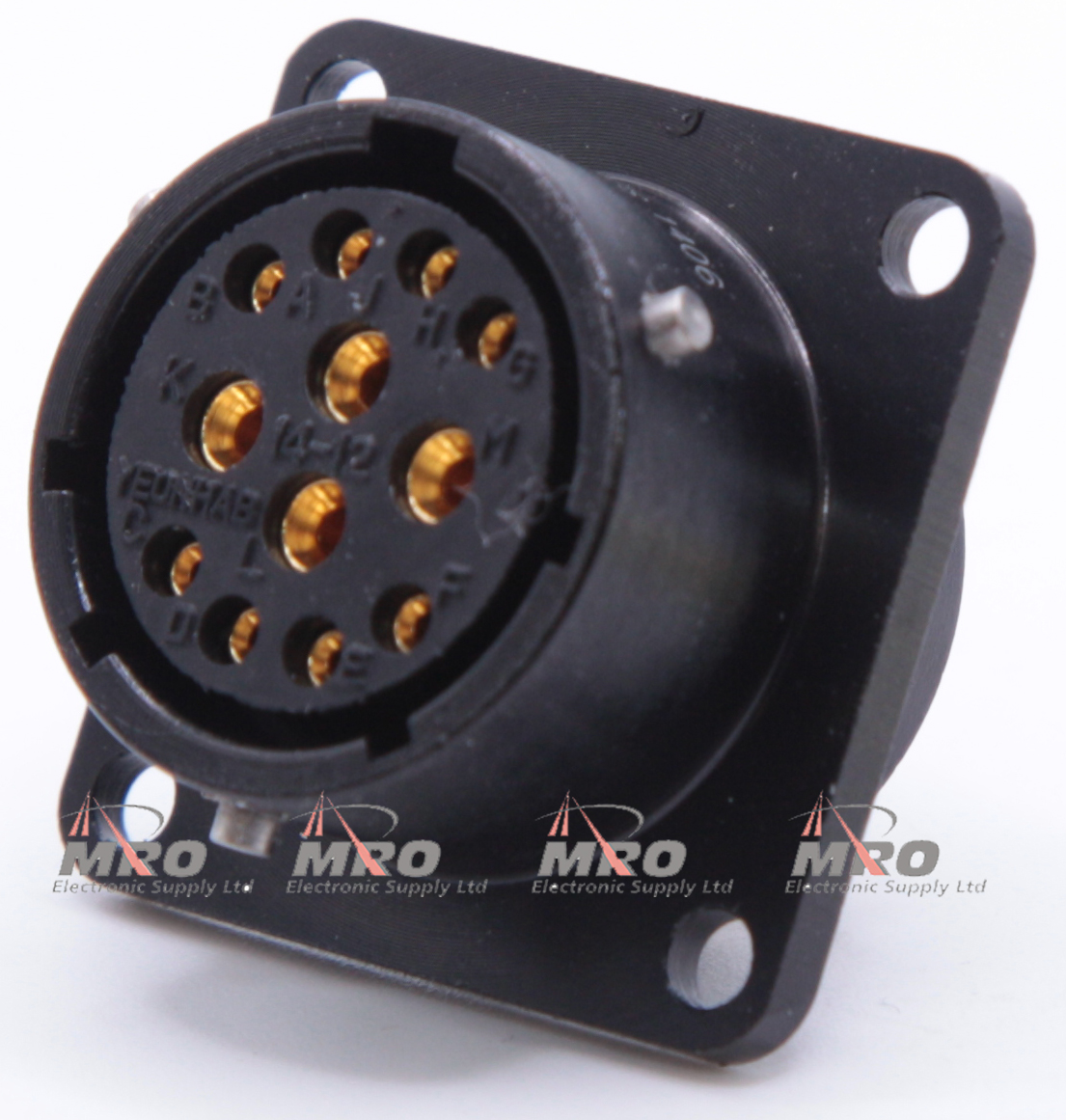

MS3112E14-12S PANEL MOUNT BAYONET CONNECTOR, FEMALE, 12 SOLDER SOCKETS
MRO Part # B02E14-12S
MS3112E14-12S Type connector 12 Pin Bayonet Coupled Panel Mount Plug with Female Insert.
Built following MIL-DTL-26482 Guidelines.
Product Specifications |
|
|---|---|
| Manufacture Name | Not Specified |
| Manufacture Part Number | MS3112E14-12S |
| Connector Specification | MIL-C-26482 Series 1 Type |
| Connector Style | Panel Mount Jack |
| Shell Size | #14 |
| Insert Gender | Female |
| Insert Layout | 14-12 |
| Number of Contacts | 8 #20, 4#16 |
| Contact Gender | Female Socket |
| Contact Type | Solder |
| Shell Material | Aluminum Alloy |
| Shell Plating | Zinc Cobalt |
| Shell Colour | Black |
| RoHS Status | Compliant |
