MS3112E14S-5S MIL TYPE BAYONET CONNECTOR, 5 FEMALE CONTACTS

MRO Part # B02E14-5S

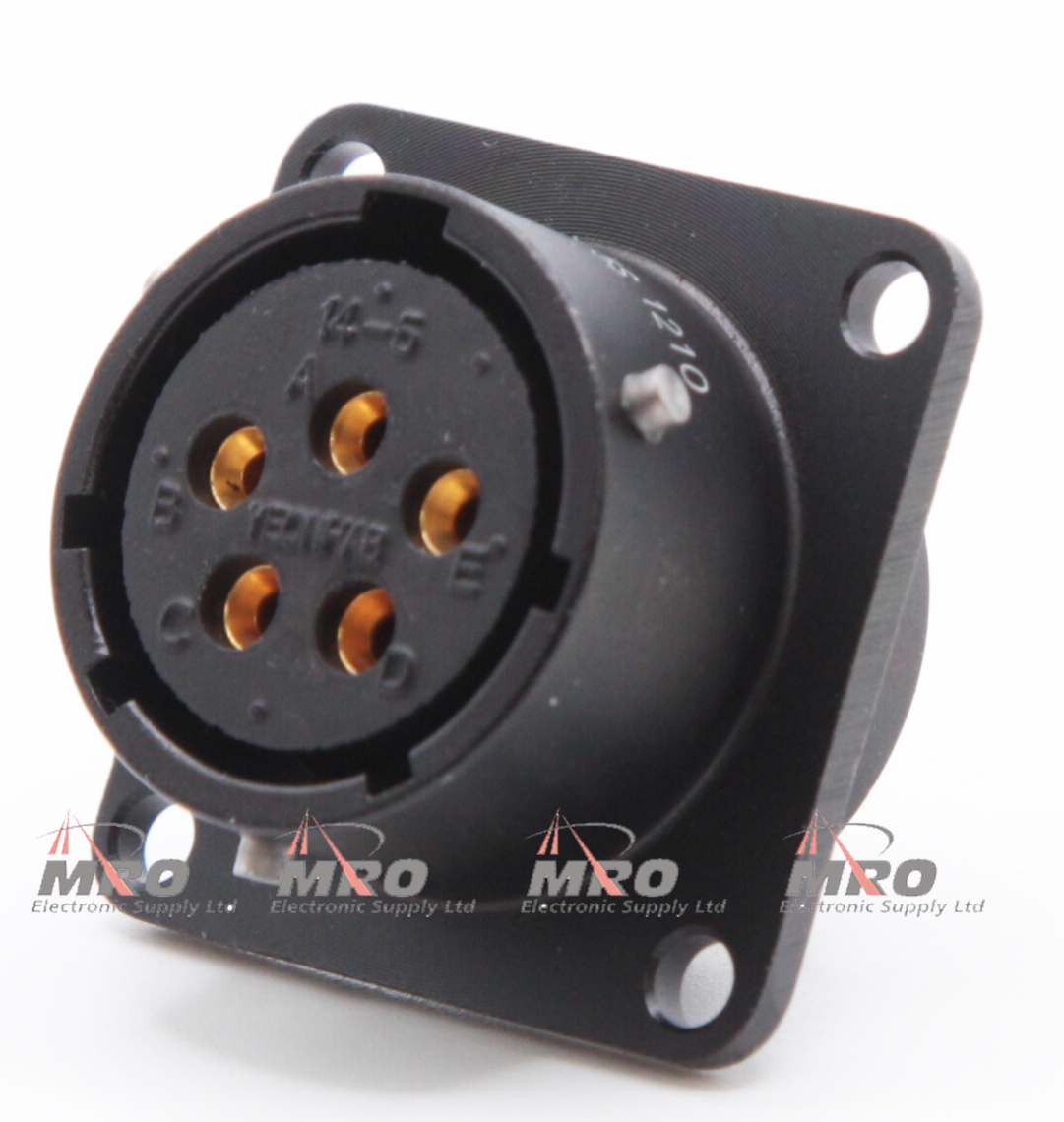

MS3112E14S-5S Circular MIL type connector. 5 socket bayonet coupled panel mount jack.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.

Manufacture Part Number = MS3101A14S-5S
Connector Specification = MIL-C-26482 Series 1
Connector Style = 4 hole panel mount jack
Shell Size = #14
Insert Layout = 14-5
Number of Contacts = 5 #16
Contact Gender = Female Socket

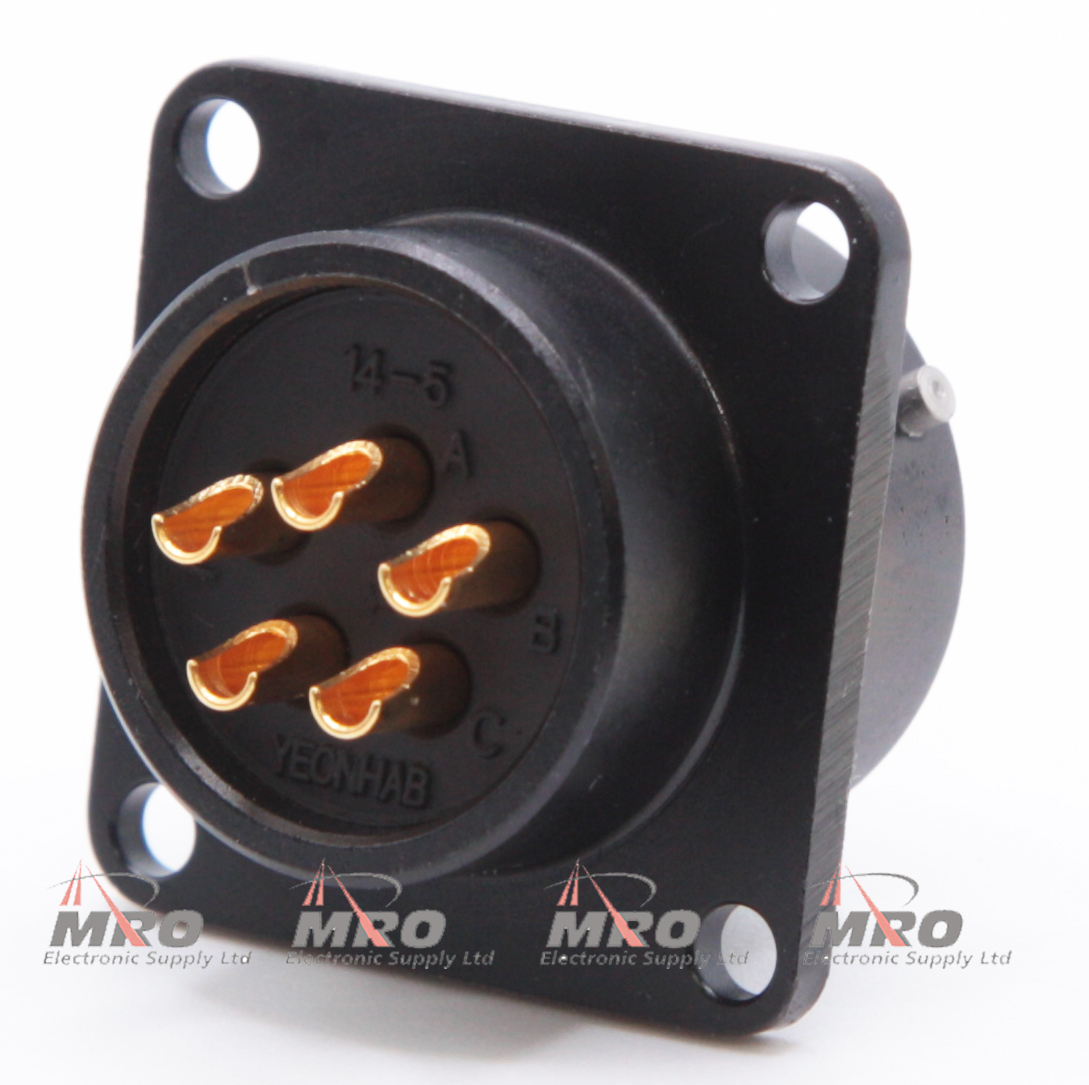

Contact Type = Solder
End Bell = No
RoHS = Yes
Shell Material = Aluminum Alloy
Shell Plating= Zinc Cobalt
Shell Colour = Black

Built following MIL-DTL-26482 Guidelines.

MRO Part # B02E14-5S
