MS3116A16-8P MIL TYPE BAYONET CONNECTOR, 8 FEMALE CONTACTS

MRO Part # B06A16-8P

AKA 851-06A16-8P50-66

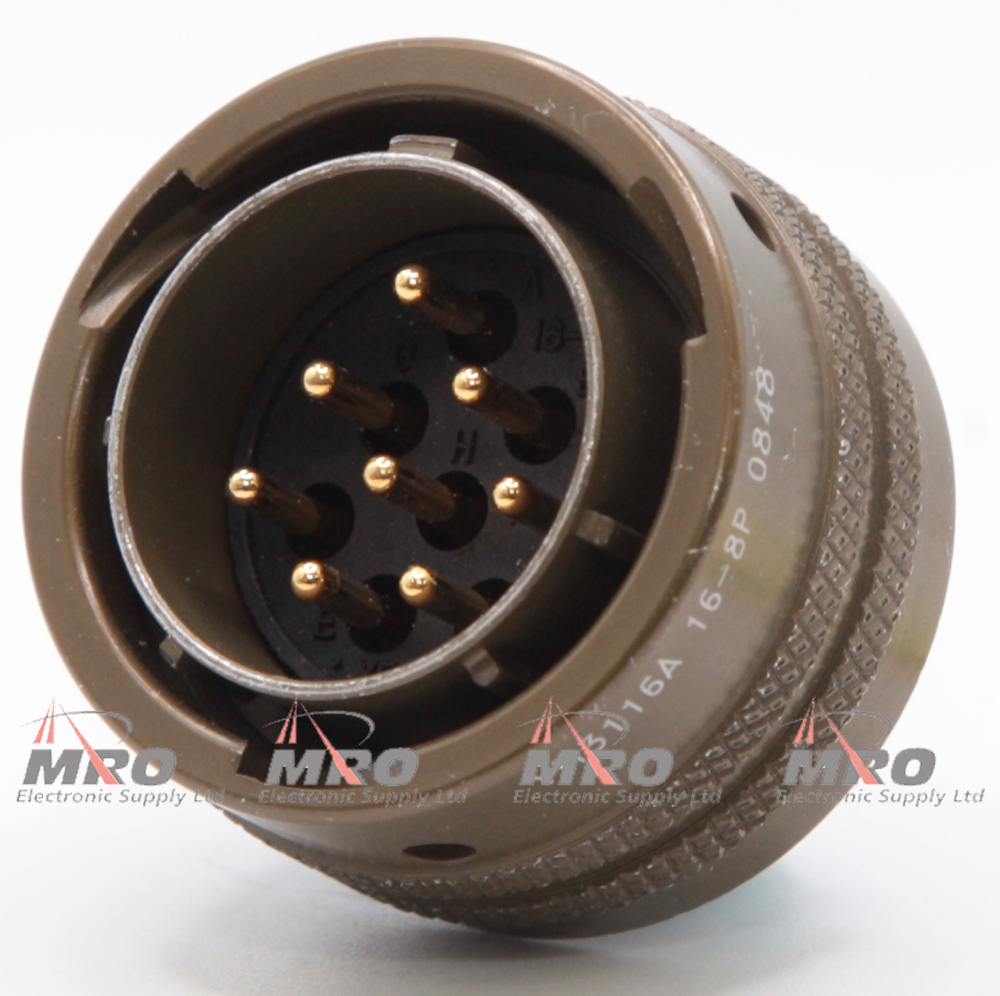

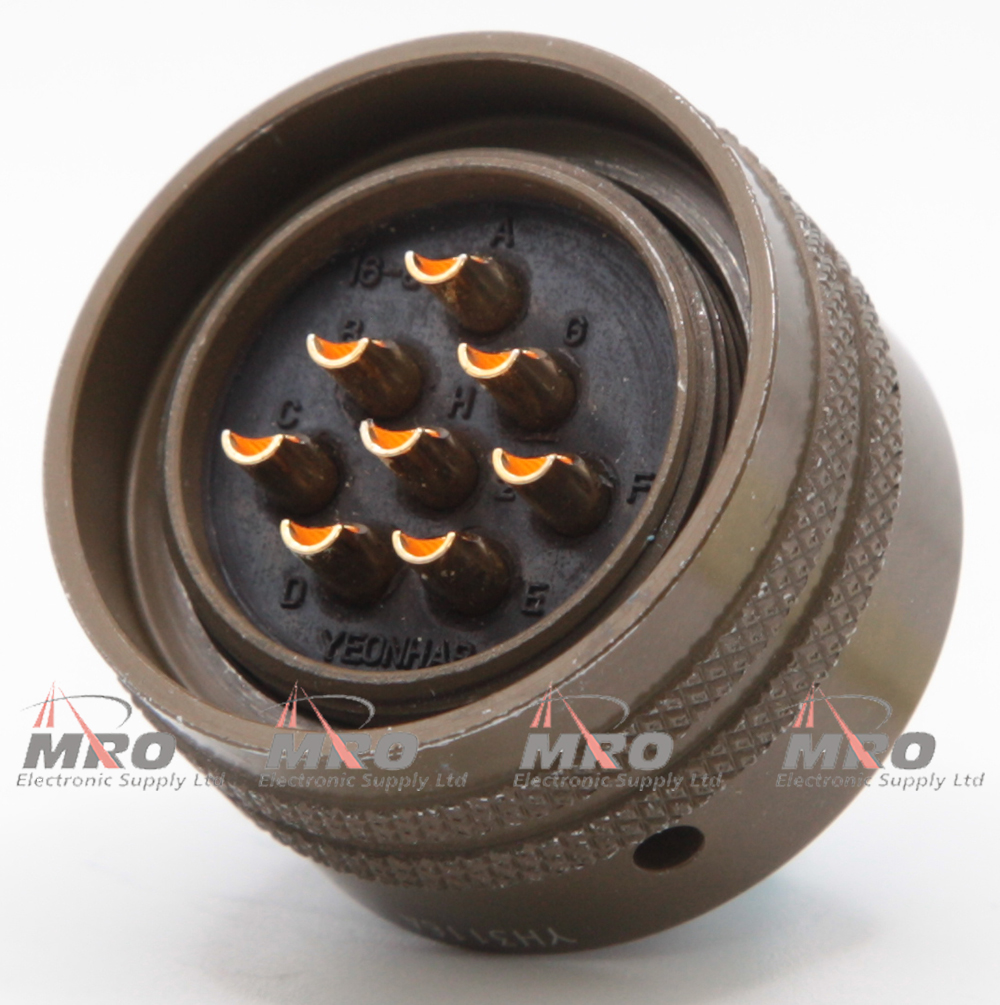

MS3116A16-8P. Circular MIL type connector. 8 pin bayonet coupled plug.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.
Manufacture Part Number = MS3116A16-8P, 851-06A16-8P50-66
Connector Specification = MIL-C-26482 Series 1
Connector Style = Cable mount plug
Shell Size = # 16
Insert Layout = 16-8
Number of Contacts = 8 #16
Contact Gender = Male Pin
Contact Type = Solder
End Bell = No
RoHS = No
Shell Material = Aluminum Alloy
Shell Plating= Chromate over Cadmium
Shell Colour = Olive Drab

Built Following MIL-DTL-26482 Guidelines.

MRO Part # B06A16-8P
