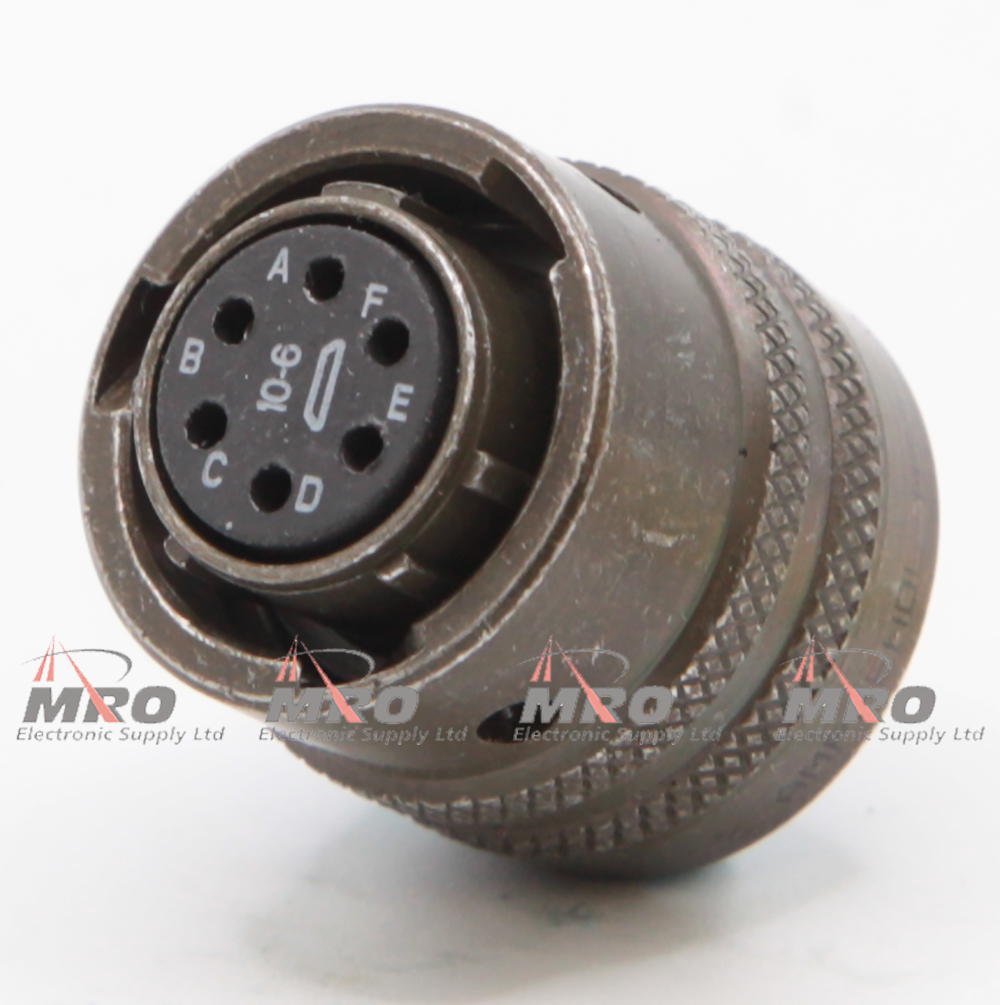

MS3116F10-6S CABLE MOUNT BAYONET CONNECTOR, FEMALE, 6 SOLDER SOCKETS
MS3116F10-6S Connector 6 Pin Bayonet Coupled Cable Mount Plug with Female Insert and Cable Clamp.
Built following MIL-DTL-26482 Guidelines.
Product Specifications |
|
|---|---|
| Manufacture Name | Amphenol |
| Manufacture Part Number | MS3116F10-6S |
| Connector Specification | MIL-C-26482 Series 1 Type |
| Connector Style | Plug |
| Shell Size | #10 |
| Insert Gender | Female |
| Insert Layout | 10-6 |
| Number of Contacts | 6 #20 |
| Contact Gender | Female Socket |
| Contact Type | Solder |
| End Bell | Yes |
| Shell Material | Aluminum Alloy |
| Shell Plating | Cadmium |
| Shell Colour | Olive Drab |
| RoHS Status | Non-Compliant |
