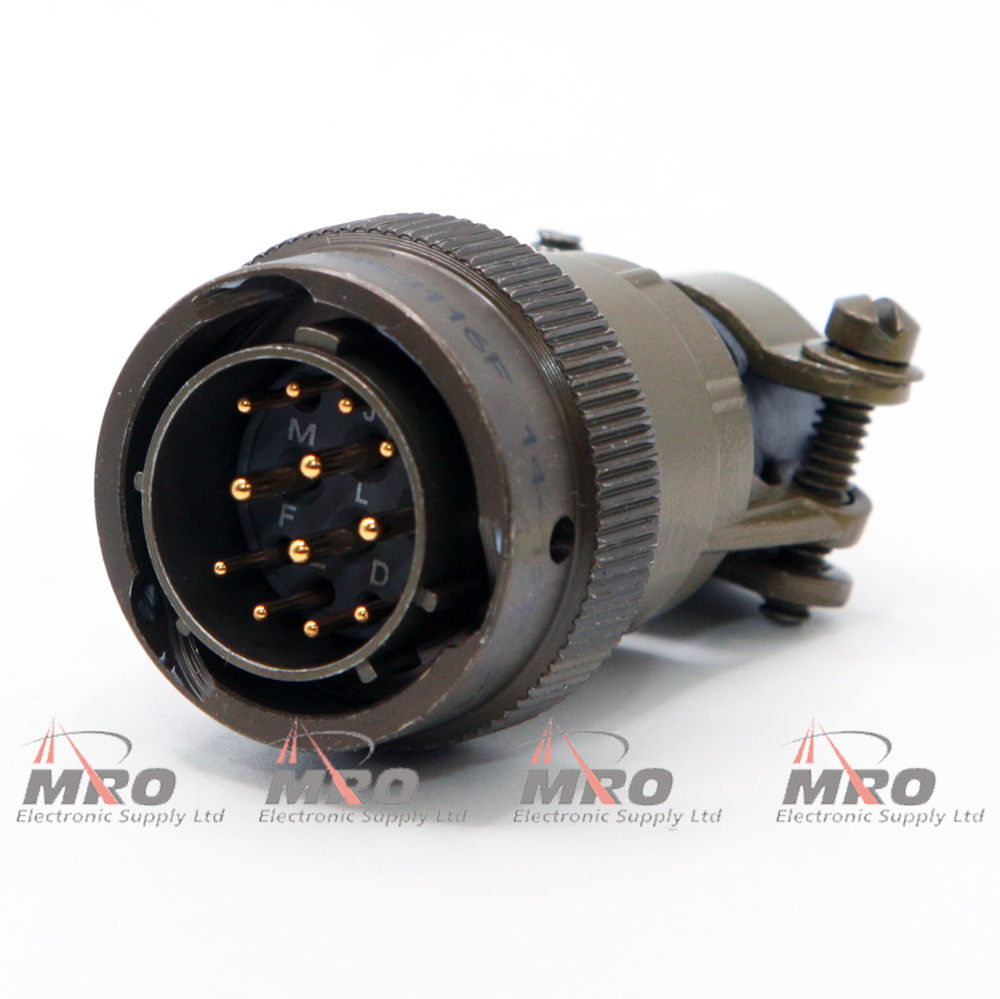

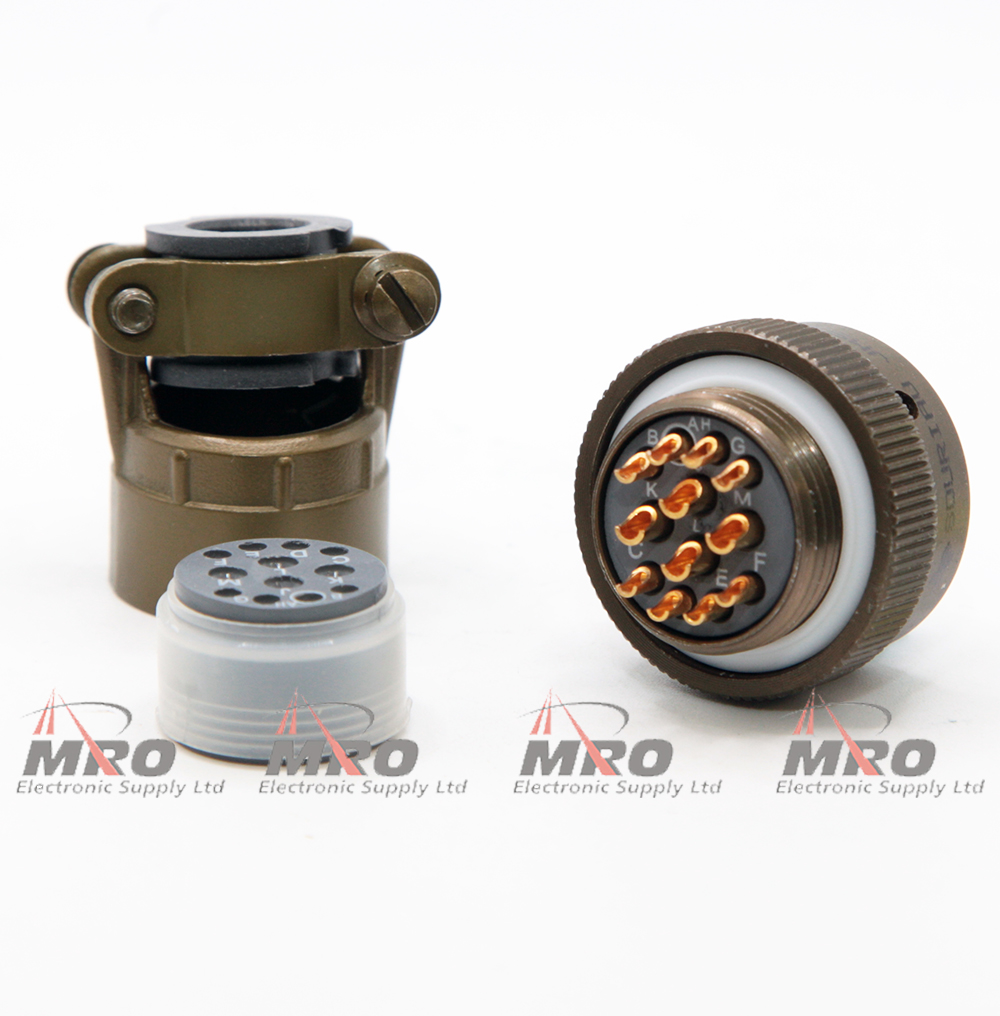

MS3116F14-12P MIL TYPE BAYONET CONNECTOR, 12 MALE CONTACTS

MRO Part # MS3116F14-12P

MS3116A14-12P Circular MIL type connector. 12 pin bayonet coupled plug.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.

Manufacture Part Number = MS3116F14-12P
Connector Specification = MIL-C-26482 Series 1
Connector Style = Cable mount plug
Shell Size = #14
Insert Layout = 14-12
Number of Contacts = 8 #20, 4#16
Contact Gender = Male Pin
Contact Type = Solder
End Bell = Yes
RoHS = No
Shell Material = Aluminum Alloy
Shell Plating= Cadmium
Shell Colour = Olive Drab

Built Following MIL-DTL-26482 Guidelines.
