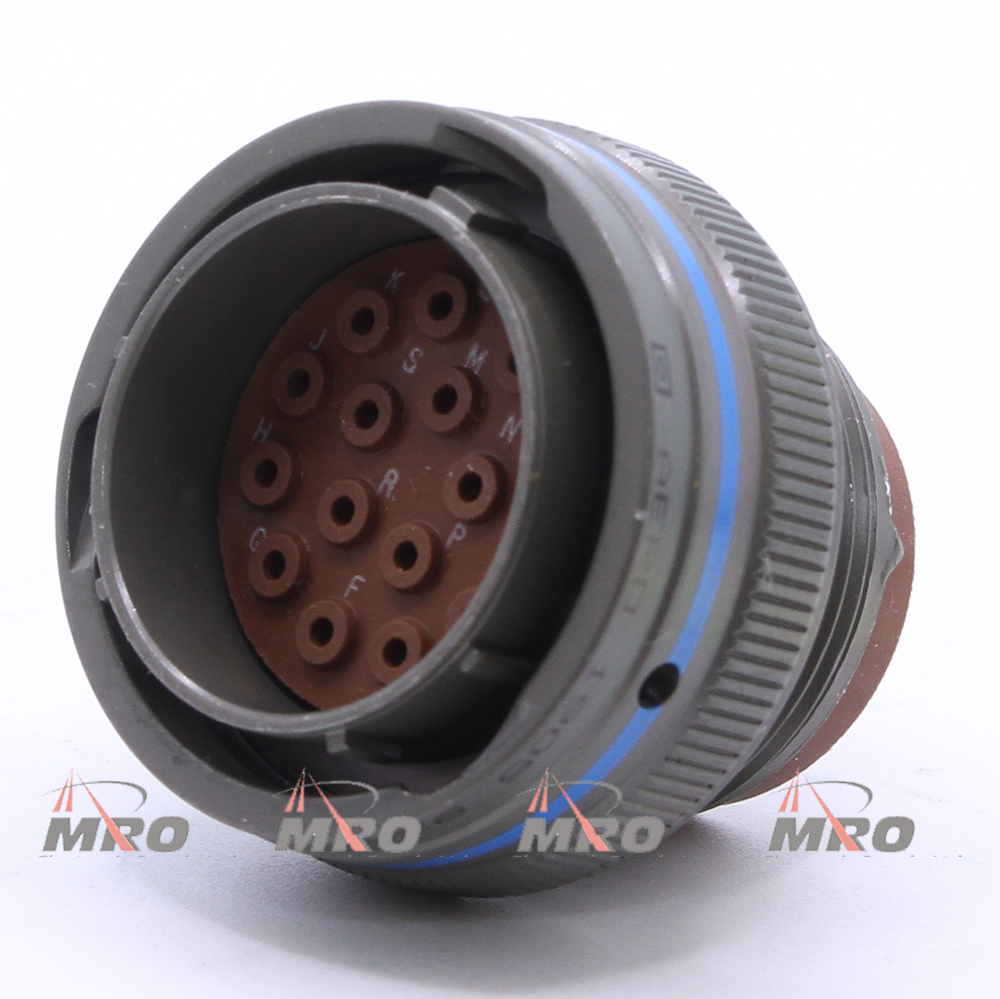

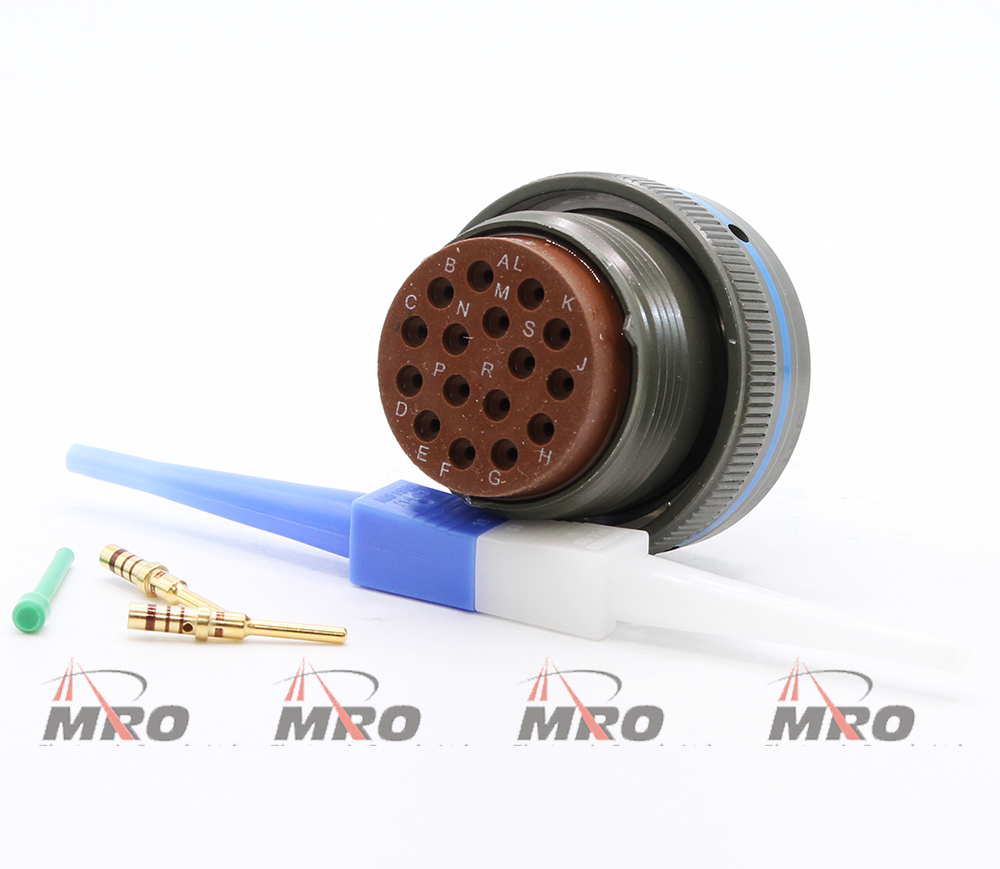

MS3476W20-16P CABLE MOUNT BAYONET CONNECTOR, MALE, 16 CRIMP PINS
MRO Part # MS3476W20-16P
Circular MIL connector 16Pin Bayonet Coupled Cable Mount Jack with Male Insert.
Built following MIL-DTL-26482 Guidelines.
Product Specifications |
|
|---|---|
| Manufacture Name | Amphenol |
| Manufacture Part Number | MS3476W20-16P |
| Connector Specification | MIL-DTL-26482 Series 2 Type |
| Connector Style | Plug |
| Shell Size | #20 |
| Insert Layout | 20-16 |
| Number of Contacts | 16 #16 |
| Contact Gender | Male Pin |
| Contact Type | Crimp |
| End Bell | None |
| Shell Material | Aluminum Alloy |
| Shell Plating | Cadmium |
| Shell Colour | Olive Drab |
| RoHS Status | Non-Compliant |
