PT06A14-5P MIL TYPE BAYONET CONNECTOR, 5 MALE CONTACTS

MRO Part # B06A14-5P

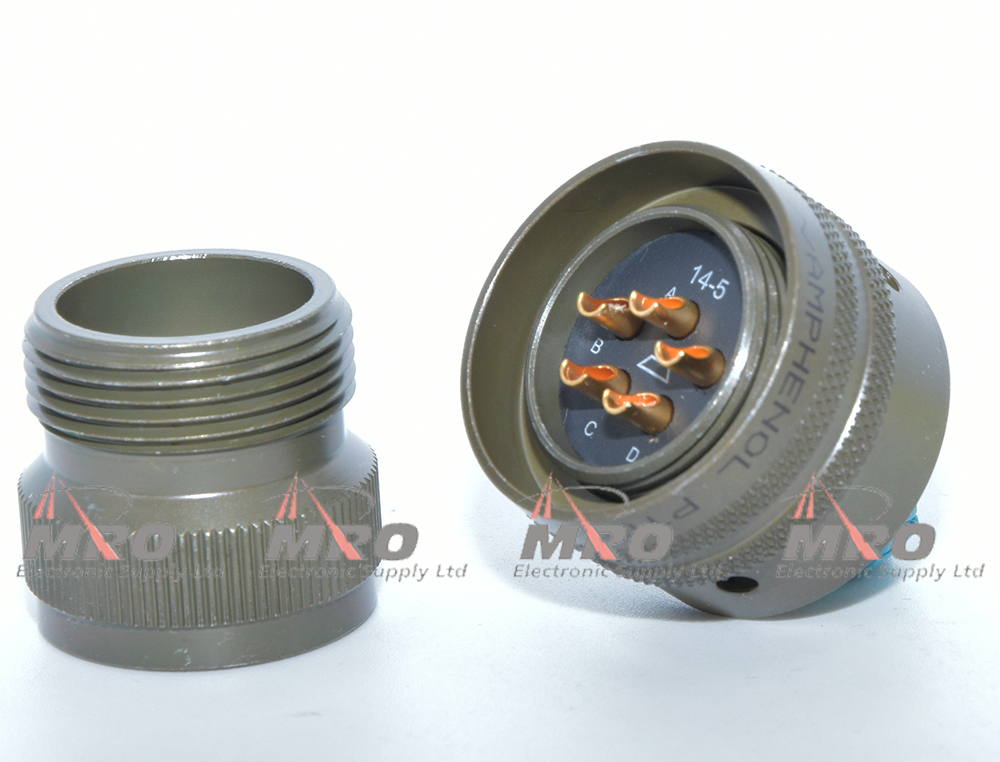

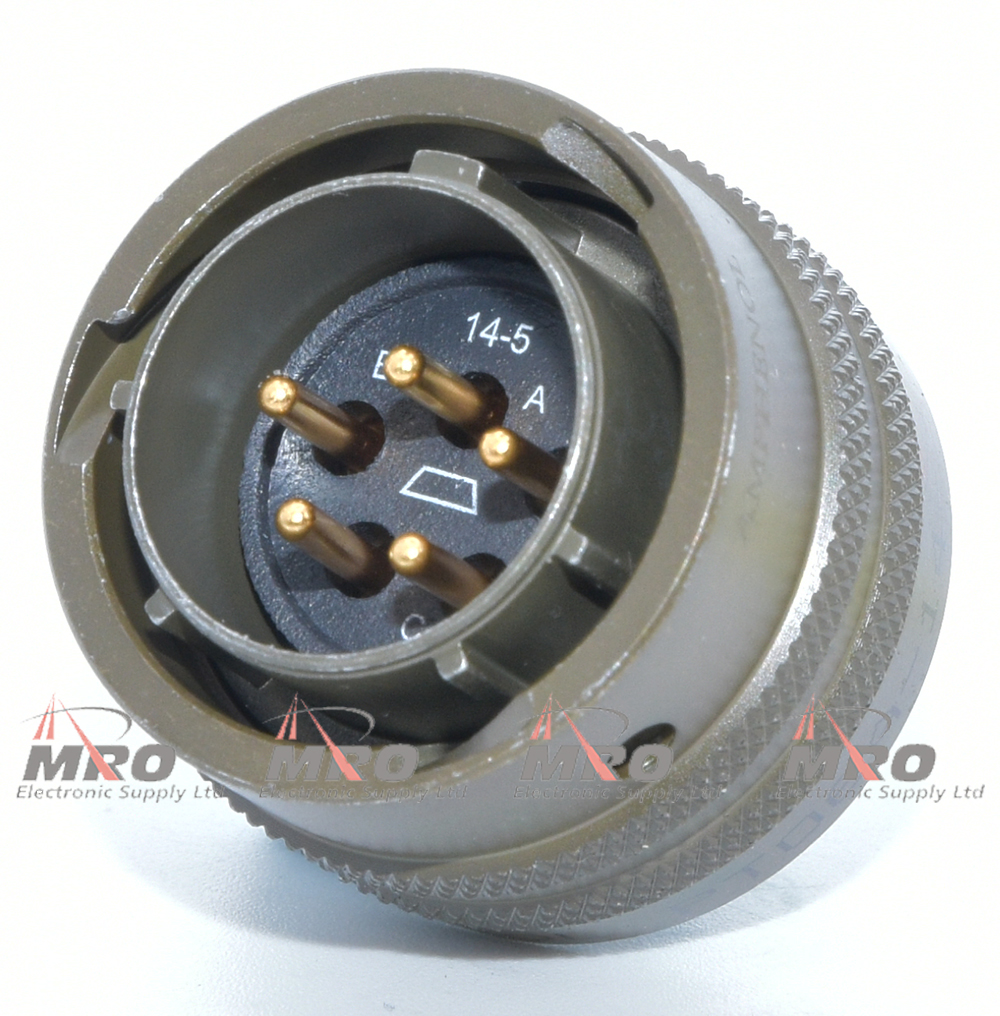

PT06A14-5P  Circular MIL type connector. 5 pin bayonet coupled cable mount plug. A MS3057-6A cable clamp is optional.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.
Manufacture Part Number = PT06A14-5P
Connector Specification = MIL-C-26482 Series 1
Connector Style = Cable mount plug
Shell Size = #14
Insert Layout = 14-5
Number of Contacts = 5 #16
Contact Gender = Male Pin
Contact Type = Solder
End Bell = Yes
RoHS = No
Shell Material = Aluminum Alloy
Shell Plating= Cadmium
Shell Colour = Olive Drab

Built following MIL-DTL-26482 Guidelines.

MRO Part # B06A14-5P-SP
