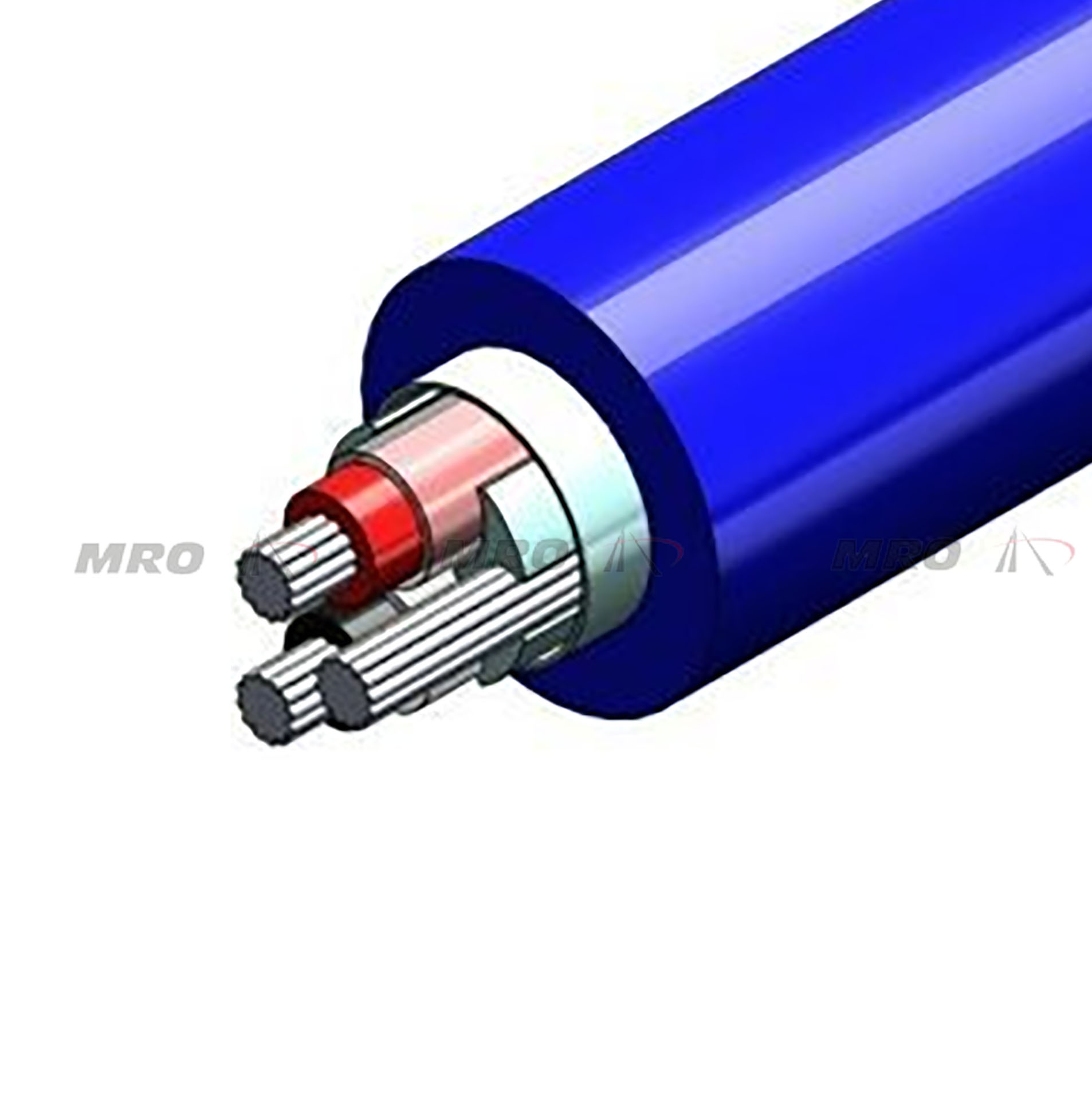

PVC2C-20GBLU-DB / PVC Jacketed Multi Conductor Cable
MRO Part # PVC2C-20GBLU-DB
CBL 20G 2C PVC JKT FOIL 0.220 OD DIR BUR
2x 20Awg conductors Shielded Blue Jacket UL Listed CSA Certified RoHS
Suitable for Direct Burial applications. CSA AWM LL54185 I/II A/B 105C 300V FT4
Standard Put-Up 1,000-foot rolls. Sold by Roll ONLY.
Product Specifications |
|
---|---|
Jacket Type | PVC (Polyvinyl Chloride) |
Number of Pairs | N/A |
Gauge of Pairs | N/A |
Number of Conductors | 2 |
Gauge of Conductors | 20 |
Shield Type | Aluminum Foil |
Low Temp Rating | N/A |
High Temp Rating | N/A |
Voltage Rating | 300V |
Cable OD (Inches) | 0.2-0.3 |
Agency Approvals | CSA |
RoHS Status | Compliant |
