COAXIAL CABLE. DUAL SHIELD, STRANDED CONDUCTOR, 50 OHMS. FEP JACKET. RG400

MRO Part #RG400

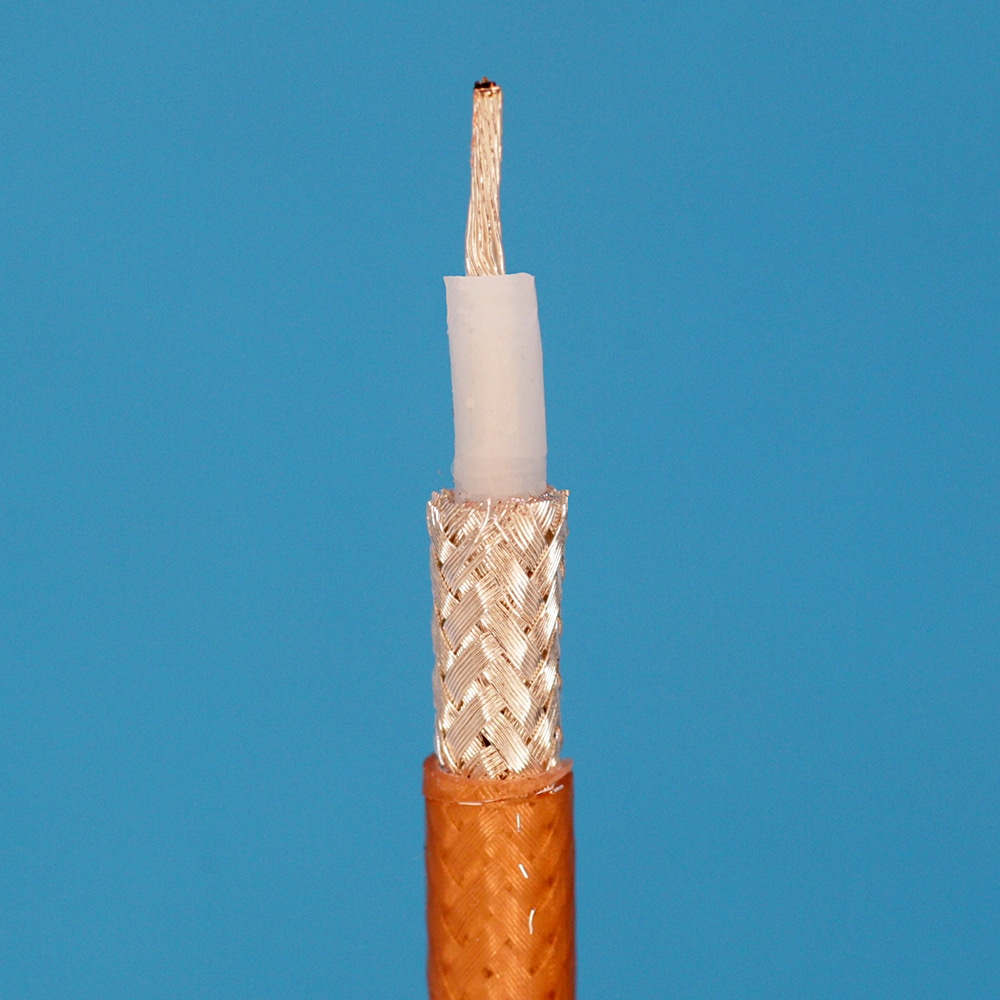

RG400 is a high-temperature, 50 Ohm coaxial cable for RF communications and test equipment, both analog and digital. It has a stranded silver-covered copper center conductor (0.98 mm OD), solid PTFE dielectric, dual silver-plated copper braid shield, and an FEP outer jacket (4.95 mm OD). Temperature range spans -55°C to 200°C. Capacitance is 32 pF/ft with a velocity factor of 70%.

Key Points

• 50 Ohm impedance, high-temperature coax

• Stranded silver-covered copper conductor

• Solid PTFE dielectric

• Dual silver-plated braid shield

• FEP outer jacket, -55°C to 200°C

• Capacitance 32 pF/ft, velocity factor 70%

RG400 Data sheet
