FLL240SFPU-75 drawing

75 OHM POLYURETHANE JACKETED COAXIAL CABLE. FLL240SFPU-75

MRO Part# FLL240SFPU-75

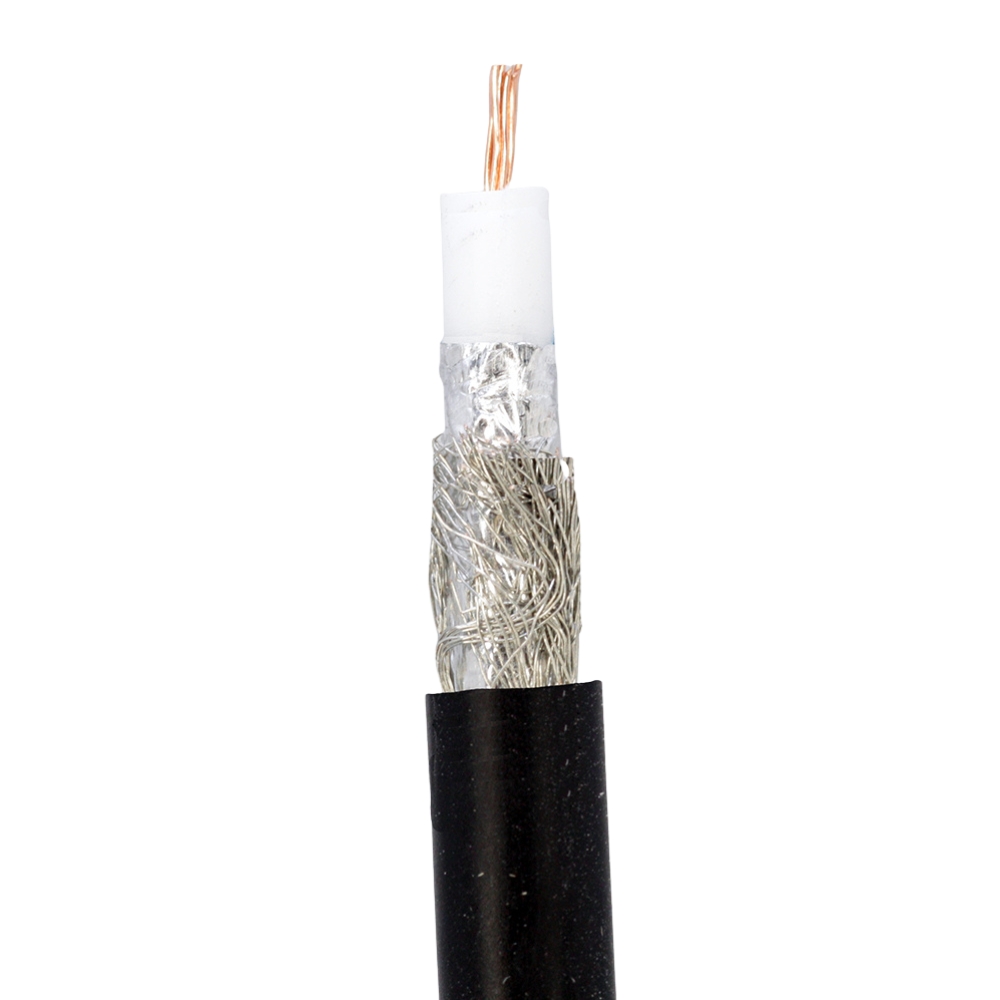

The FLL240SFPU-75 is a 75  Ω coaxial cable. It is an outdoor rated cable with superior performance in cold environments and harsh weather conditions due to its polyurethane jacket. DATA SHEET

CategorySpecification Details
Inner ConductorStranded BC, 7/0.28 ± 0.01 mm
DielectricPhysical Foam Polyethylene, 3.81 ± 0.10 mm
Outer ConductorBonded Aluminum Foil + Tinned Copper Braid  Nom. 4.52 mm
JacketBlack polyurethane (TPU smooth black finish), 6.10 ± 0.13 mm
Capacitance17 ± 1 pF/ft
Impedance75 ± 3 ohm
Dielectric Resistance>2.2 Gigaohm
Dielectric Strength1.9 kv
Max Operating Frequency3000 MHz
Max Operating Voltage1.5 Kv
Operating Temp. Range-40 to +85 °C
Bending Radius (Once)100 mm
Repeated Bending Radius120 mm
Attenuation (30 MHz)6.2 dB/100m
Attenuation (900 MHz)35.7 dB/100m
Attenuation (1500 MHz)46.4 dB/100m
Attenuation (3000 MHz)69.0 dB/100m
Category:

FLL240SFPU-75 is a high-performance 75 Ω coaxial cable specifically engineered for demanding video, broadcast, CCTV surveillance systems, and satellite TV applications.

This industrial-rated cable is an excellent low loss alternative for the commercial-rated RG59, with a very similar diameter, offering significantly higher performance over the RG59 cable. Its combined temperature range of -40 to +80 º C and polyurethane jacket make it an excellent choice for cold environments or harsh weather applications.

This cable is an excellent choice for cable assemblies or wire harnesses that require overmolding.

This product can also be paired with:

RF CONNECTOR. “F” CONNECTOR, FEMALE, FOR LMR240-75 or FLL240SFPU-75. 33030741-HO

33061201X RF CONNECTOR. “F” MALE CRIMP CONNECTOR FOR LMR/FLL240SFPU-75
