KPT07E14-5S. MIL TYPE REVERSE BAYONET CONNECTOR, 5 FEMALE CONTACTS

MRO Part # KPT07E14-5S

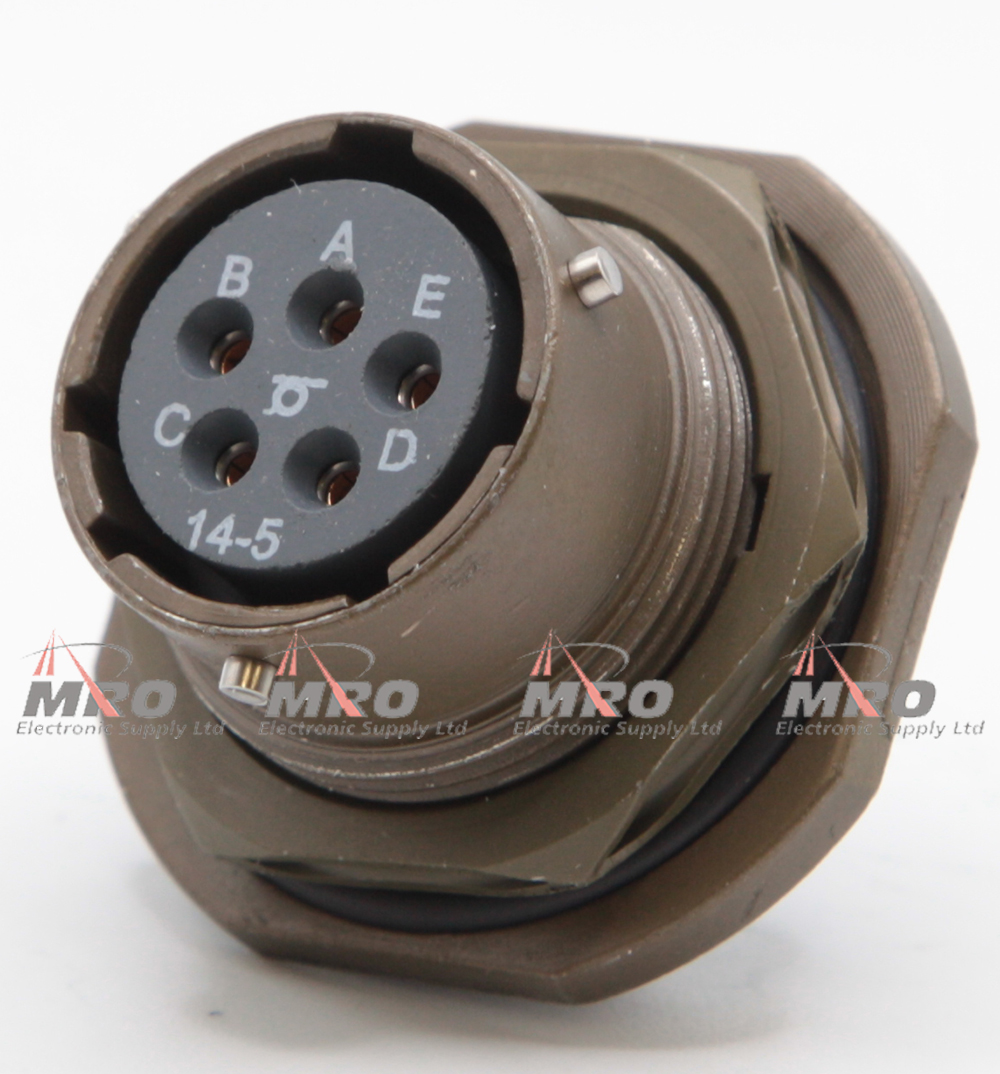

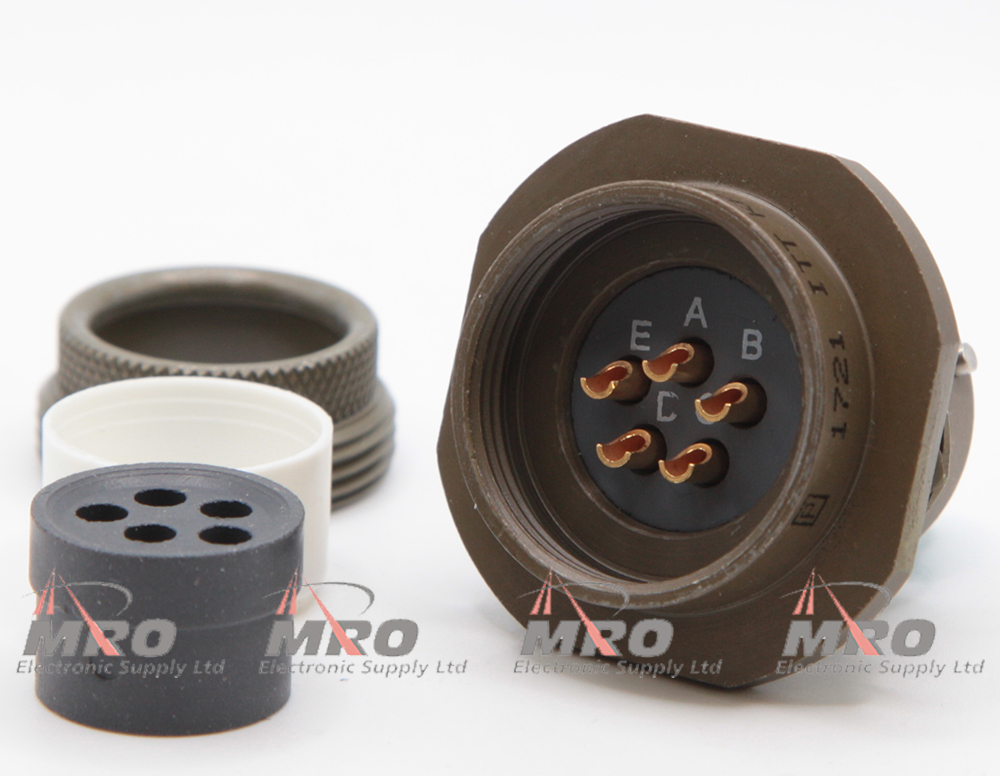

KPT07E14-5S Type connector 5 socket reverse bayonet coupled cable mount plug with female insert.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.

Manufacture Part Number = KPT07E14-5S
Connector Specification = MIL-C-26482
Connector Style = Panel mount jack
Shell Size = #14
Insert Layout = 14-5
Number of Contacts = 5 #16
Contact Gender = Female Socket
Contact Type = Solder
End Bell = Yes
RoHS = ?
Shell Material = Aluminum Alloy
Shell Plating= Electroless Nickel
Shell Colour = Olive Drab

MRO Part # B07E14-5S
