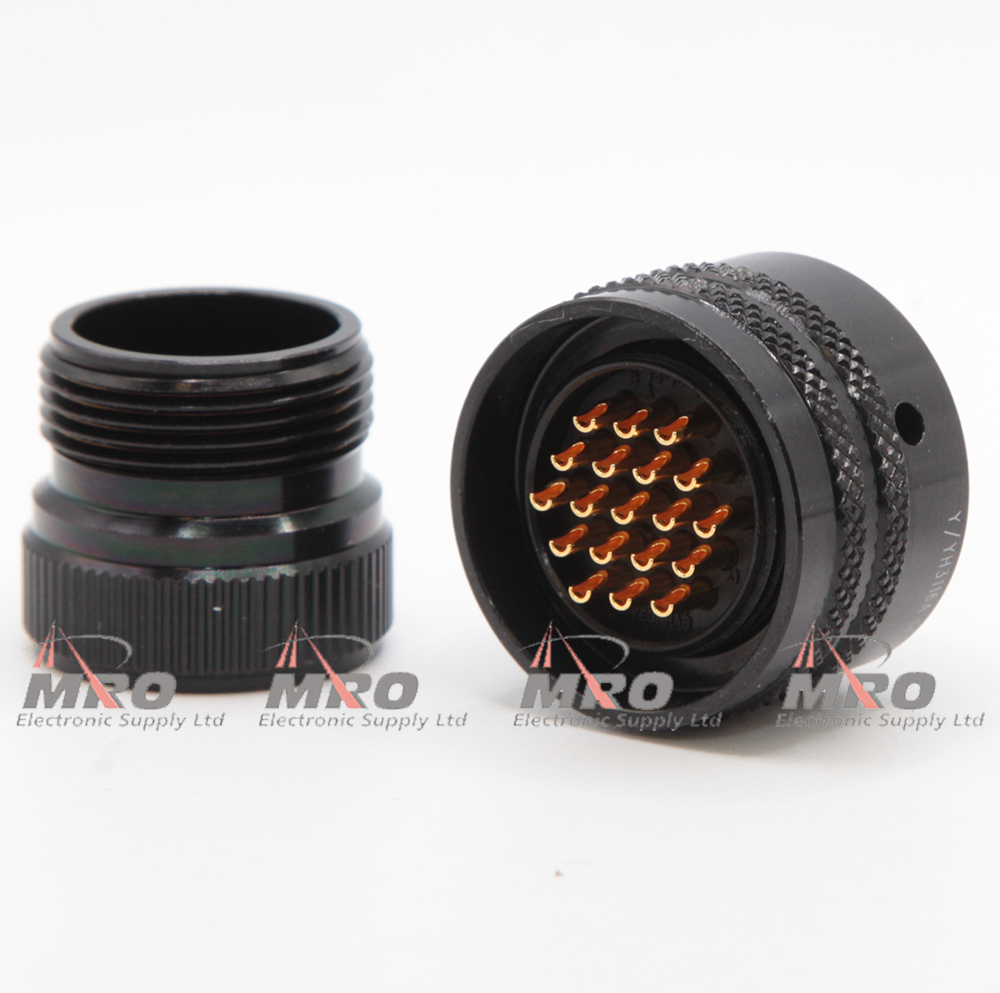

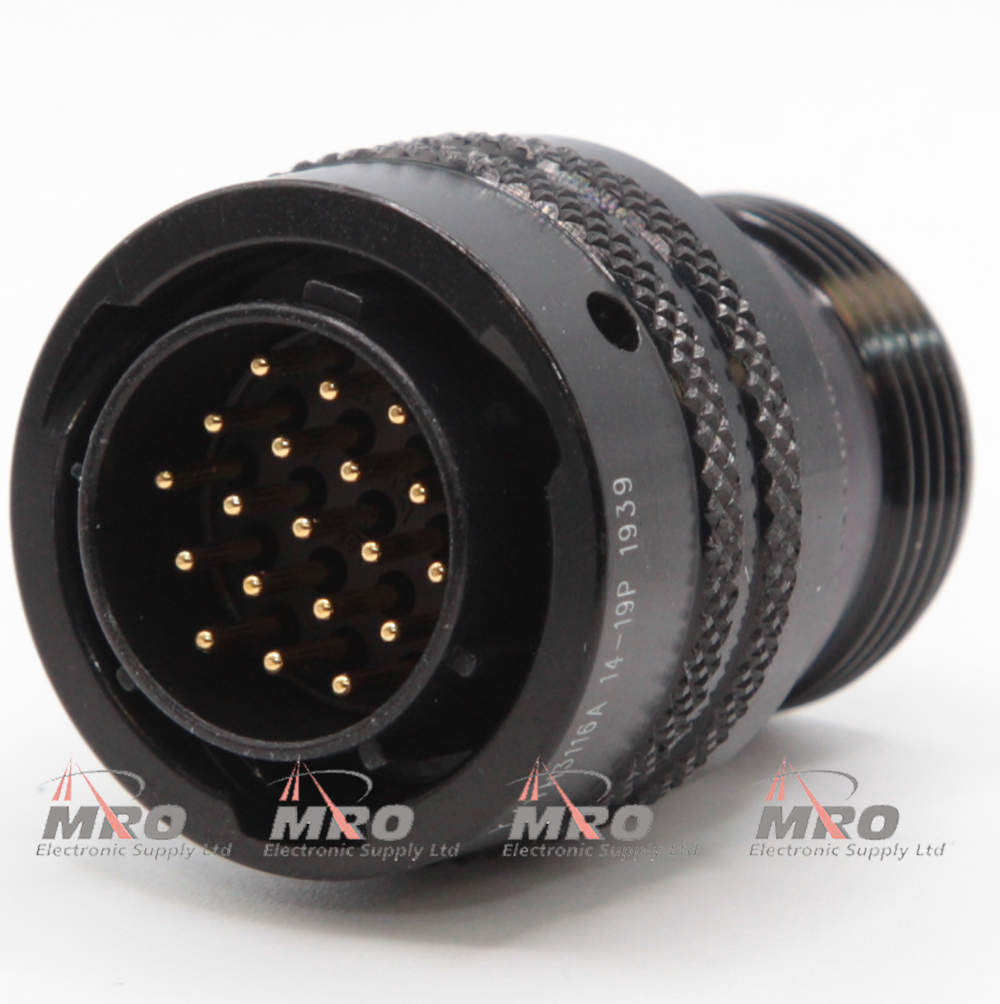

MS3116A14-19P MIL TYPE BAYONET CONNECTOR. 19 MALE SOLDER CONTACTS

MRO Part # B06A14-19P-04
MS3116A14-19P Circular MIL type connector. 19 pin, bayonet coupled, cable mount plug. -04 suffix means zinc cobalt coating and is RoHS compliant.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.
Manufacture Part Number = MS3116A14-19P-04
Connector Specification = MIL-C-26482 Series 1
Connector Style = Cable mount plug
Shell Size = #14
Insert Layout = 14-19
Number of Contacts = 19 #20
Contact Gender = Male Pin
Contact Type = Solder
End Bell = General Duty Threaded “A” Shell
RoHS = Yes
Shell Material = Aluminum Alloy
Shell Plating= Zinc Cobalt
Shell Colour = Black

Built Following MIL-DTL-26482 Guidelines.
