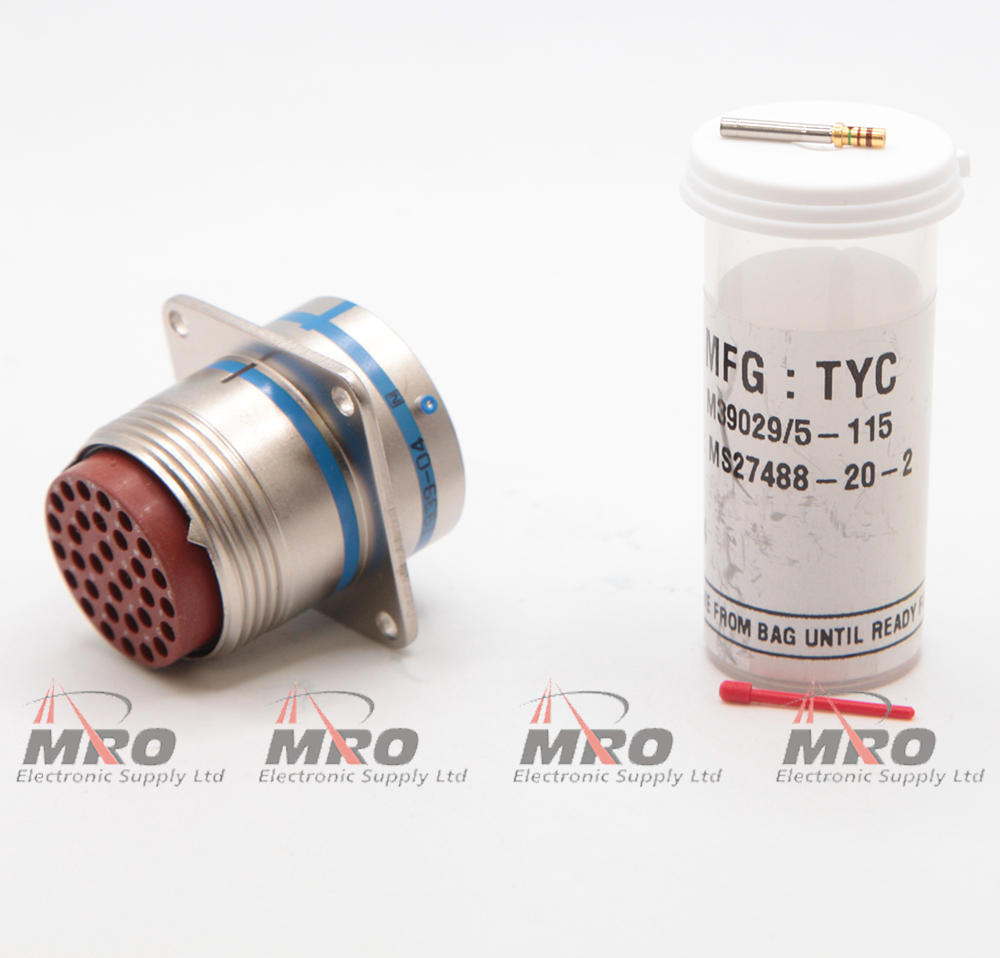

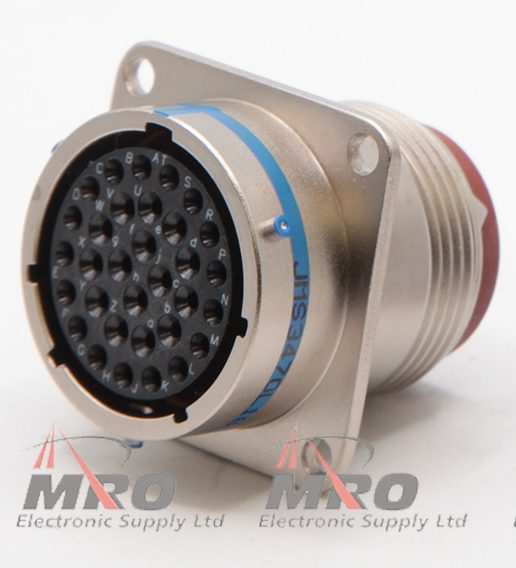

MS3470L18-32S MIL TYPE BAYONET CONNECTOR, 32 FEMALE CONTACTS

MRO Part # MS3470L18-32S

Circular MIL connector. 32 socket, bayonet coupled, panel mount jack.

Our MIL connectors may be obtained from manufacturers such as Amphenol, Bendix, ITT Cannon, & Glenaire.
Manufacture Part Number = MS3470L18-32S
Connector Specification = MIL-C-26482 ll
Connector Style = 4 hole panel mount jack
Shell Size = #18
Insert Layout = 18-32
Number of Contacts = 32 #20
Contact Gender = Female Socket
Contact Type = Crimp
End Bell = None
RoHS = Yes
Shell Material = Aluminum Alloy
Shell Plating= Electroless Nickel
Shell Colour = Bare Metal
