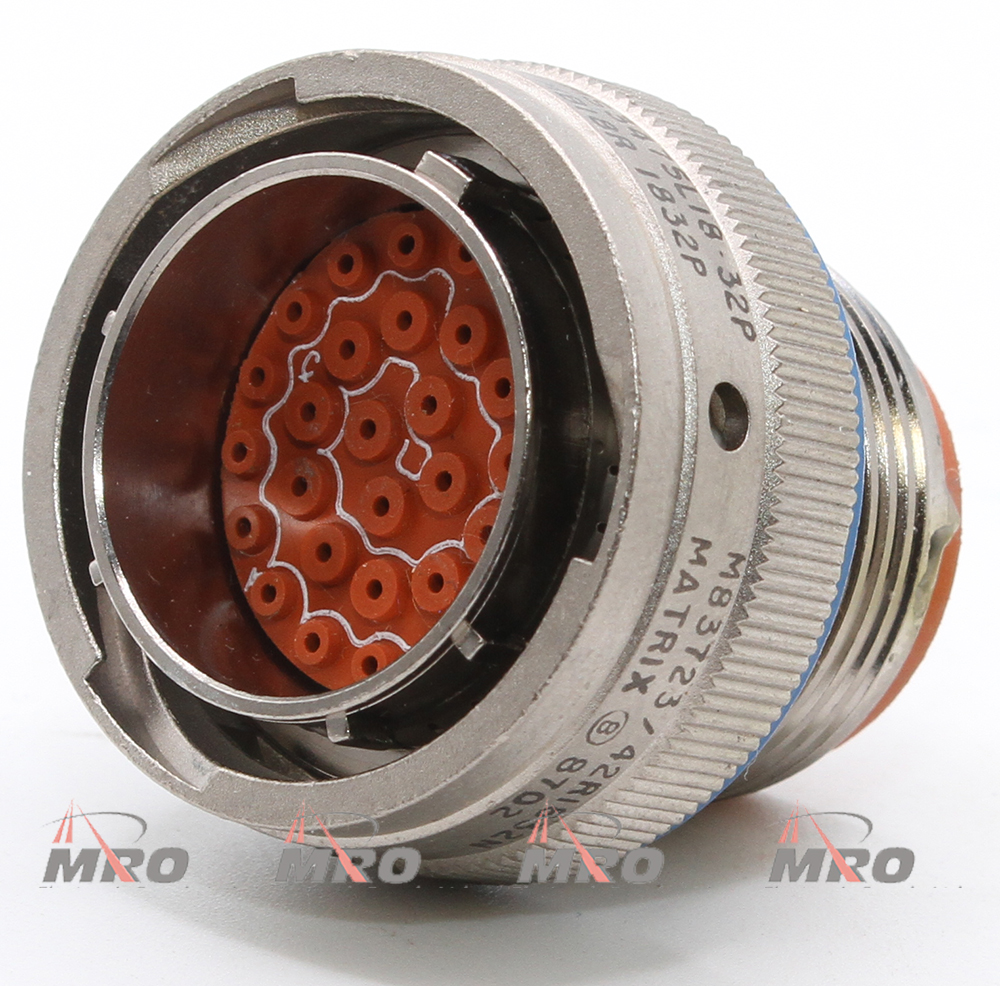

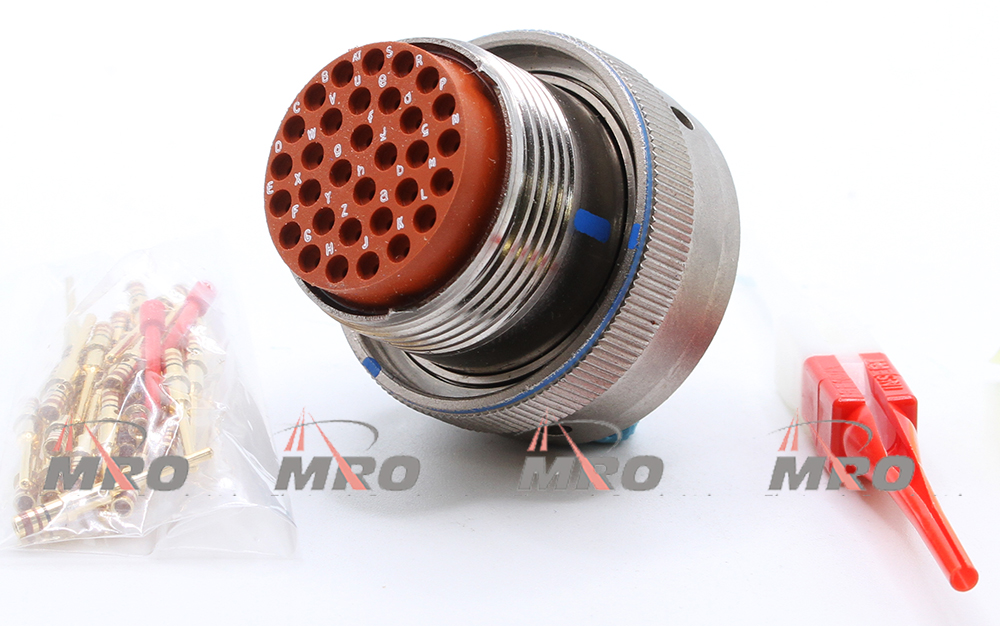

MS3475L18-32P-AMP BAYONET CABLE MOUNT CONNECTOR, MALE, 32 SOLDER PINS
MRO Part # MS3475L18-32P-AMP
MS3475L18-32P type connector 32 Pin Bayonet Coupled Plug with Female Insert.
Built Following MIL-DTL-26482 Guidelines.
Product Specifications |
|
|---|---|
| Manufacture Name | Amphenol |
| Manufacture Part Number | MS3475L18-32P |
| Connector Specification | MIL-C-26482 Series 1 Type |
| Connector Style | Plug |
| Shell Size | #18 |
| Insert Layout | 18-32 |
| Number of Contacts | 32 #20 |
| Contact Gender | Male Pin |
| Contact Type | Crimp |
| End Bell | None |
| Shell Material | Aluminum Alloy |
| Shell Plating | Electroless Nickel |
| Shell Colour | Bare Metal |
| RoHS Status | Compliant |
